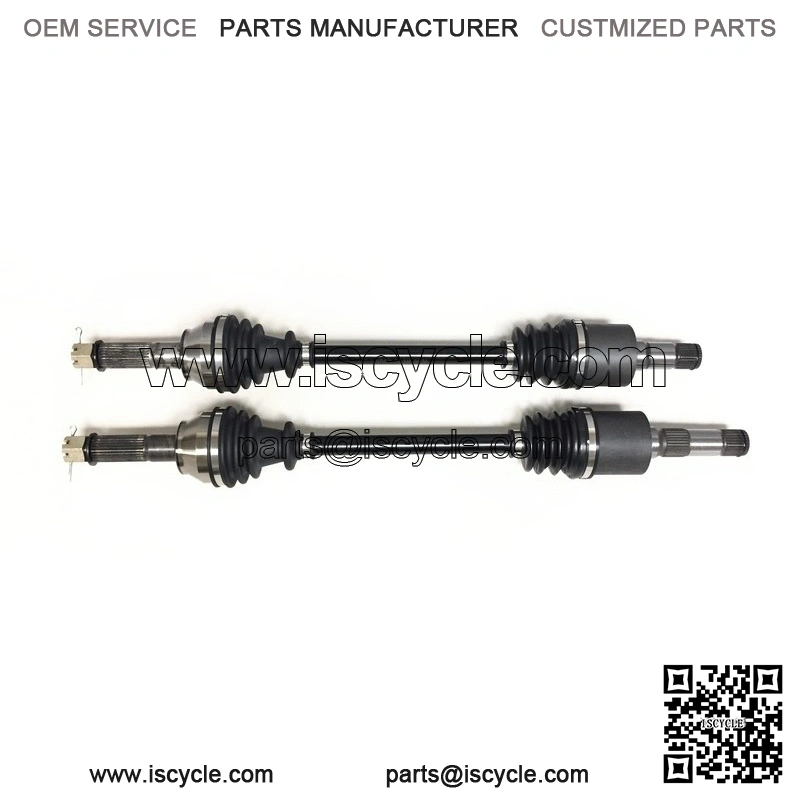

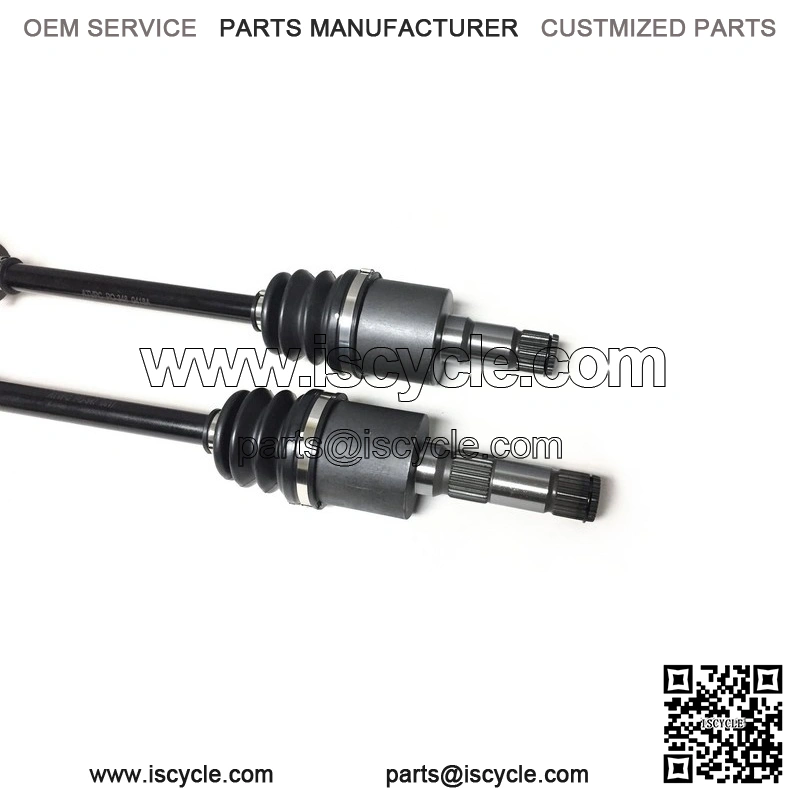

This is a pair of new, fully-assembled CV axles for a Polaris UTV.
pair of
They fit REAR, LEFT & RIGHT on the following models:
2007-2009 Ranger 500 2×4/4×4 (built after Aug 28 2006)
2007-2009 4×4 Ranger 700, Crew 700 (built after Aug 28 2006)
2007-2009 4×4 Ranger XP 700/XP 700 LE (built after Aug 28 2006)
2010-2017 6×6 Ranger 800
*Axles made as an OE replacement, and not intended for lifted/ modified vehicles
Product features:
Stronger than OEM chromoly forged steel axle bars
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: Left – 27/29, Right – 27
Outboard CV joint spline count: Left – 26, Right – 26
Compressed overall axle length: Left – 705 mm, Right – 660 mm
Replaces OEM # 2204858, 1332503, 1332576, 1332648, 1332722, 1332877, 2203742.
